VOSSLOHClass 68STADLER

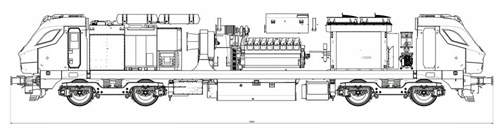

Class 68 Tech Drawing

The Locos 68001 - 68034

Built 2012 - 2016 by Vossloh/Stadler, Valencia, Spain
Engine Caterpiller C175-16 of 2800 kW (3750hp) at 1740 rpm
Main Alternator ABB WGX560
Traction Motors 4 x AMXL400 AC frame mounted ABB 4FRA6063
Maximum Tractive Effort 317 kN (71260 lbf)
Continuous Tractive Effort 258 kN (58000 lbf) at 20.5 mph
Power at Rail ?
Brake Force 73 t
Weight 85 t
Train Brakes Air and Rheostatic
Dimensions 20.50 m x 2.69 m
Wheel Diameter 1100 mm
Design Speed and Max Speed 100 mph
Fuel Capacity 5600 litres
Train Supply Electric, ETS index 96
Route Availability 7
Number of Locomotives 34
